Interfacing QuTiP

from IPython.display import display
import matplotlib.pyplot as plt

# symbolic tools
import sympy
from sympy.physics.quantum.fermion import FermionOp
from sympy.physics.quantum import Dagger

# Numerical tools
import numpy as np
import matplotlib.pyplot as plt
from scipy.sparse.linalg import eigsh

# Second-quantization package
from second_quantization import hilbert_space

# QuTip
import qutip

The QuTiP Python package is widely used for simulating quantum systems, including time evolution. For many-body models, building Hamiltonians by hand as matrices can be tedious.

second_quantization helps by converting symbolic sympy fermionic expressions into consistent matrix representations, which can then be wrapped as QuTiP Qobj objects.

We illustrate this on the minimal braiding protocol from this paper.

Steps

  1. Build the Hamiltonian and observables symbolically (sympy).
  2. Convert them to matrices in a consistent basis (second_quantization).
  3. Wrap matrices/states as QuTiP objects (Qobj, QobjEvo).
  4. Run the time evolution and interpret the plots (sesolve).

Braiding protocol (minimal Kitaev chains)

The system consists of two minimal Kitaev chains coupled via a central quantum dot.

DeviceFigure
Device schematic

When there is a $\pi$ phase difference between the superconductors, the system realizes the T-junction needed for braiding.

DeviceFigure
Majorana basis schematic

Braiding is implemented by adiabatically ramping the dot chemical potential and its couplings to the chains. Half a braiding protocol (shown in the image below) exchanges the Majorana modes between left and right chains.

DeviceFigure
Braiding protocol schematic

A full braid corresponds to twice this sequence.

Setting up the Hamiltonian

We start by defining the fermionic operators and symbolic parameters.

# set-up symbolic fermionic operators
cL1,cL2,cM,cR1,cR2 = fermions = [FermionOp(name) for name in ['c_{L1}', 'c_{L2}', 'c_{M}', 'c_{R1}', 'c_{R2}']]

# set up parameters
mu_L1, mu_L2, t_L, Delta_L = sympy.symbols(
    r"\mu_{L1} \mu_{L2} t_L \Delta_L", real=True, commutative=True
)
mu_R1, mu_R2, t_R, Delta_R = sympy.symbols(
    r"\mu_{R1} \mu_{R2} t_R \Delta_R", real=True, commutative=True
)
mu_M, t_LM, t_MR = sympy.symbols(
    r"\mu_M t_{LM} t_{RM}", real=True, commutative=True
)

Next, we assemble the Hamiltonian in physically meaningful pieces (useful later for time dependence):

  • the left Kitaev chain $H_L$,
  • the right Kitaev chain $H_R$,
  • the central quantum dot $H_M$,
  • the coupling terms between the chains and the dot $H_{LM}$ and $H_{MR}$.
# set up the Hamiltonian

H_L = (
    mu_L1 * Dagger(cL1) * cL1
    + mu_L2 * Dagger(cL2) * cL2
    + t_L * Dagger(cL1) * cL2
    + t_L * Dagger(cL2) * cL1
    + Delta_L * Dagger(cL1) * Dagger(cL2)
    + Delta_L * cL2 * cL1
)

H_R = (
    mu_R1 * Dagger(cR1) * cR1
    + mu_R2 * Dagger(cR2) * cR2
    + t_R * Dagger(cR1) * cR2
    + t_R * Dagger(cR2) * cR1
    + Delta_R * Dagger(cR1) * Dagger(cR2)
    + Delta_R * cR2 * cR1
)

H_M = mu_M * Dagger(cM) * cM

H_LM = t_LM * Dagger(cL2) * cM + t_LM * Dagger(cM) * cL2
H_MR = t_MR * Dagger(cM) * cR1 + t_MR * Dagger(cR1) * cM

H_full = H_L + H_M + H_R + H_LM + H_MR

For readability, we display each term:

display(sympy.Eq(sympy.Symbol("H_{L}"), H_L))
display(sympy.Eq(sympy.Symbol("H_{R}"), H_R))
display(sympy.Eq(sympy.Symbol("H_{M}"), H_M))
display(sympy.Eq(sympy.Symbol("H_{LM}"), H_LM))
display(sympy.Eq(sympy.Symbol("H_{MR}"), H_MR))

$\displaystyle H_{L} = \Delta_{L} {{c_{L1}}^\dagger} {{c_{L2}}^\dagger} + \Delta_{L} {c_{L2}} {c_{L1}} + \mu_{L1} {{c_{L1}}^\dagger} {c_{L1}} + \mu_{L2} {{c_{L2}}^\dagger} {c_{L2}} + t_{L} {{c_{L1}}^\dagger} {c_{L2}} + t_{L} {{c_{L2}}^\dagger} {c_{L1}}$

$\displaystyle H_{R} = \Delta_{R} {{c_{R1}}^\dagger} {{c_{R2}}^\dagger} + \Delta_{R} {c_{R2}} {c_{R1}} + \mu_{R1} {{c_{R1}}^\dagger} {c_{R1}} + \mu_{R2} {{c_{R2}}^\dagger} {c_{R2}} + t_{R} {{c_{R1}}^\dagger} {c_{R2}} + t_{R} {{c_{R2}}^\dagger} {c_{R1}}$

$\displaystyle H_{M} = \mu_{M} {{c_{M}}^\dagger} {c_{M}}$

$\displaystyle H_{LM} = t_{LM} {{c_{L2}}^\dagger} {c_{M}} + t_{LM} {{c_{M}}^\dagger} {c_{L2}}$

$\displaystyle H_{MR} = t_{RM} {{c_{M}}^\dagger} {c_{R1}} + t_{RM} {{c_{R1}}^\dagger} {c_{M}}$

We then convert to matrices with second_quantization. We keep a static part $H_{TPMM}=H_L+H_R$ and treat the dot/couplings ($H_M, H_{LM}, H_{MR}$) as driven terms, matching QuTiP’s time-dependent Hamiltonian format.

To realize the virtual T-junction we impose a $\pi$ phase difference by choosing opposite pairing signs, $\Delta_L=-\Delta_R=E_{gap}/2$.

E_gap = 10

sweet_spot_parameters = {
    mu_L1: 0, mu_L2: 0,
    t_L: E_gap/2, Delta_L: E_gap/2,
    mu_R1: 0, mu_R2: 0,
    t_R: E_gap/2, Delta_R: -E_gap/2,
    }

We convert each Hamiltonian component into its matrix representation:

h_pmm = hilbert_space.to_matrix(H_L+H_R, operators=fermions, sparse=False)
h_pmm = np.sum(
    [k.subs(sweet_spot_parameters)*v for k,v in h_pmm.items()], axis=0
    )

h_m = hilbert_space.to_matrix(H_M, operators=fermions, sparse=False)[mu_M]
h_lm = hilbert_space.to_matrix(H_LM, operators=fermions, sparse=False)[t_LM]
h_mr = hilbert_space.to_matrix(H_MR, operators=fermions, sparse=False)[t_MR]

Observables

We track (i) local parities and (ii) fidelity with respect to chosen initial/final target states. In QuTiP these become e_ops, so expectations are recorded at every time.

# parity observables
P_L = 1j*(cL1 + Dagger(cL1))*(-1j)*(cL2 - Dagger(cL2))
P_R = 1j*(-1j)*(cR1 - Dagger(cR1))*(cL2 + Dagger(cL2))
P_M = 1 - 2 * Dagger(cM) * cM

# convert to matrices
p_l = hilbert_space.to_matrix(P_L, operators=fermions, sparse=False)[1]
p_m = hilbert_space.to_matrix(P_M, operators=fermions, sparse=False)[1]
p_r = hilbert_space.to_matrix(P_R, operators=fermions, sparse=False)[1]

To track the evolution of the system's state, we define the initial and final target states as kets and compute their corresponding density matrices. These states are:

  • Initial state: $|\psi_{init}\rangle = \frac{1}{2}|E_+\rangle|0\rangle |E_-\rangle$
  • Final state: $|\psi_{final}\rangle = \frac{1}{2}|O_-\rangle|0\rangle |O_-\rangle$

Here $|E_{\pm}\rangle = \frac{1}{\sqrt{2}}(|0\rangle \pm |1,1\rangle)$ and $|O_{\pm}\rangle = \frac{1}{\sqrt{2}}(|1,0\rangle \pm |0,1\rangle)$ are the even and odd parity ground states of the left/right chains, respectively, and $|0\rangle$ is the empty state of the central dot. Ideally, a transformation from the initial to the final state corresponds to a full braid of the Majorana modes.

We write these states as:

# initial and final states
init_state = np.kron(np.array([-1,0,0,1]),np.kron(np.array([1,0]), np.array([1,0,0,1])))/2
final_state = -np.kron(np.array([0,-1,1,0]),np.kron(np.array([1,0]), np.array([0,-1,1,0])))/2

f_init = np.outer(init_state, init_state)
f_final = np.outer(final_state, final_state)

Define time dependent parameter profiles

The protocol is implemented by smooth ramps of $\mu_M$, $t_{LM}$, and $t_{MR}$. We use the same “tanh” profiles as in the paper to stay close to adiabatic evolution.

# define time-dependent profiles using the parameters from the paper
t_segment = 200.54
t_ramp = 21.21
res = 2e-1
t_0 = 0
t_fin = 6*t_segment

def tanh_profile(t,T,t_scale,offset):
    t=(t+offset)%(3*T)
    return 1/2+(np.tanh((t-T/2)/(t_scale))-np.tanh((t-3*T/2)/(t_scale))+np.tanh((t-7*T/2)/(t_scale)))/2

t_vals = np.linspace(t_0, t_fin, num=int((t_fin-t_0)/res))
mu_d = tanh_profile(t_vals%(3*t_segment), t_segment, t_ramp, t_segment)
t_lm = tanh_profile(t_vals%(3*t_segment), t_segment, t_ramp, 0)
t_mr = tanh_profile(t_vals%(3*t_segment), t_segment, t_ramp, -t_segment)

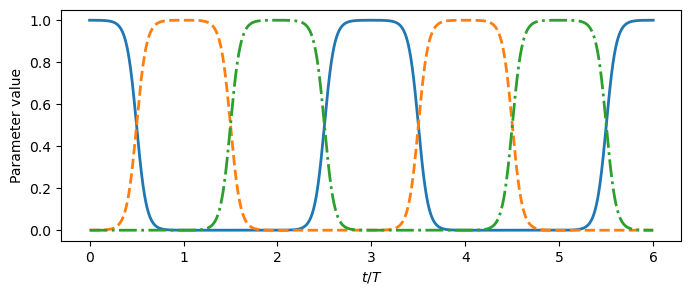

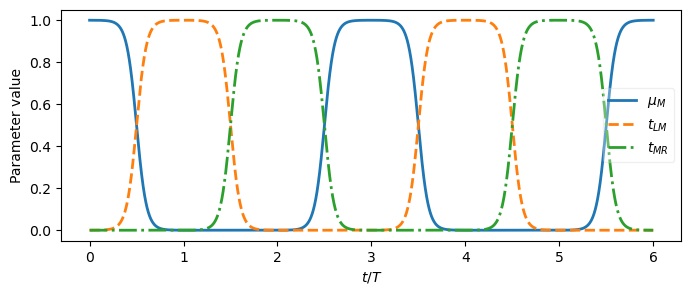

# plot the time-dependent profiles
fig, ax = plt.subplots(figsize=(8, 3))

ax.plot(t_vals/t_segment, mu_d, label=r'$\mu_M$', linewidth=2)
ax.plot(t_vals/t_segment, t_lm, '--', label=r'$t_{LM}$', linewidth=2)
ax.plot(t_vals/t_segment, t_mr, '-.', label=r'$t_{MR}$', linewidth=2)
ax.set_ylabel('Parameter value')
ax.set_xlabel(r'$t/T$')
Text(0.5, 0, '$t/T$')

png

Time evolution (QuTiP)

Now we run a time-dependent Schrödinger evolution.

Wrapping rule: matrices and state vectors must be wrapped as qutip.Qobj before they can be used by QuTiP solvers.

static_ham = [qutip.Qobj(h_pmm)]

dynamic_terms = [h_m, h_lm, h_mr]
dynamic_params = [mu_d, t_lm, t_mr]

dynamic_ham = [
    [qutip.Qobj(term), param] for term, param in zip(dynamic_terms, dynamic_params)
    ]

h_evo_obj = qutip.QobjEvo(static_ham + dynamic_ham, tlist = t_vals)
init_obj = qutip.Qobj(init_state)
obs_evo_obj = [qutip.Qobj(op) for op in [p_l, p_m, p_r, f_init, f_final]]

The required objects are now ready:

  • h_evo_obj is the combined time-dependent Hamiltonian (H(t)).
  • init_obj is the initial state (|\psi_{init}\rangle).
  • obs_evo_obj contains the operators whose expectation values we want to record.

We now perform the time evolution:

time_evolution = qutip.sesolve(h_evo_obj, init_obj, t_vals, e_ops=obs_evo_obj)

sesolve returns expectation values in the same order as e_ops. Here that means parities first (p_l, p_m, p_r), then fidelities (f_init, f_final).

fig, ax = plt.subplots(2,1, figsize=(8, 5))

ax[0].plot(t_vals/t_segment,time_evolution.expect[0], linewidth=2, color='b', label=r'$\mathcal{P}_{L}$')
ax[0].plot(t_vals/t_segment,time_evolution.expect[1], linewidth=2, color='orange', label=r'$\mathcal{P}_{M}$')
ax[0].plot(t_vals/t_segment,time_evolution.expect[2], linewidth=2, color='green', label=r'$\mathcal{P}_{R}$')
ax[0].set_ylabel(r'$\mathcal{P}_{i}$')
ax[0].legend(loc=5)

ax[1].plot(t_vals/t_segment,time_evolution.expect[-2], label=r'$\mathcal{F}[|\psi_{init}\rangle]$', linewidth=2)
ax[1].plot(t_vals/t_segment,time_evolution.expect[-1], label=r'$\mathcal{F}[|\psi_{fin}\rangle]$', linewidth=2)
ax[1].set_ylabel(r'$\mathcal{f}[|\psi\rangle]$')
ax[1].legend(loc=5)

ax[0].set_xticklabels([])
ax[1].set_xlabel(r'$t/T$')


fig.show()

png

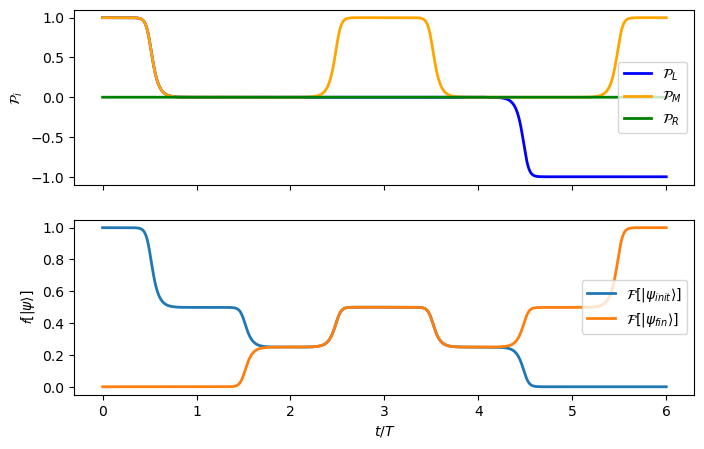

How to read this figure:

  • Parities (top): track how local fermionic parity is redistributed during the ramps.
  • Fidelities (bottom): $\mathcal{F}[|\psi_{init}\rangle]$ drops as the state leaves the start, while $\mathcal{F}[|\psi_{fin}\rangle]$ rises if the protocol reaches the target.

Together with the parameter-profile plot, these curves give a compact check that the ramps implement the intended braid.
